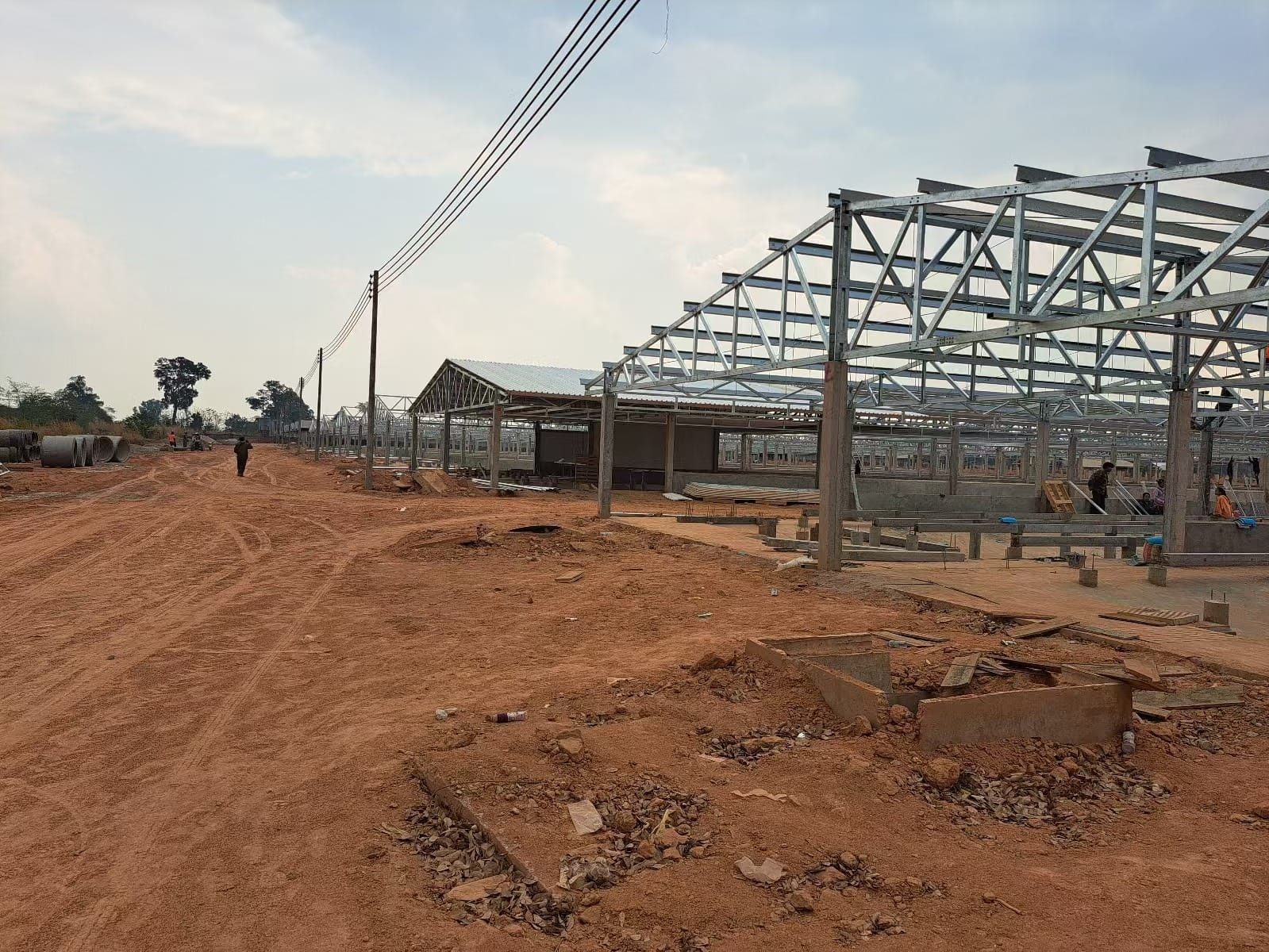

Commercial Steel Poultry House Design: Optimal Dimensions 2026
Proper steel structure dimensions are fundamental to the success of automated multi-tier layer cage systems. Optimal clear-span width, eave height, and framing layout directly affect cage row spacing, airflow uniformity, equipment installation efficiency, and overall construction cost.
Quick Answer
For H-type and A-type multi-tier layer cages, standard clear-span widths of 12m (3 rows), 15m (4 rows), and 18m (5 rows) with minimum eave height of 3.5–4.2m provide the best balance of space utilization, ventilation performance, and cost efficiency. These dimensions allow adequate walkways and overhead clearance for automated systems while minimizing steel usage.
Overcoming the Architectural Bottleneck: Why Dimension Errors Ruin Automated Layer Cages
Incorrect house width or insufficient eave height creates major problems for automated layer systems. Narrow walkways hinder maintenance access, while inadequate roof clearance restricts airflow and causes installation issues with automatic egg collection and manure removal equipment.
Width Options: 12m vs. 15m vs. 18m Clear-Span Engineering Layouts
A 12m clear-span house is ideal for 3 rows of cages with comfortable 0.8–1.0m walkways. A 15m span supports 4 rows efficiently for medium-scale farms, while an 18m span accommodates 5 rows for large commercial turnkey projects, maximizing land utilization and reducing cost per bird.
Structural Steel Barn Dimension Standards for Automated Layer Cages (2026 Engineering Data)
| Clear-Span Width (m) | Cage Tier Capacity | Number of Cage Rows | Minimum Eave Height (m) | Recommended Walkway Width (mm) | Building Cost Efficiency |
|---|---|---|---|---|---|
| 12 | 3–4 Tier | 3 rows | 3.5–3.8 | 800–1000 | High (Small-Medium Farms) |
| 15 | 4–5 Tier | 4 rows | 3.8–4.2 | 900–1100 | Excellent (Medium Farms) |
| 18 | 4–5 Tier | 5 rows | 4.0–4.5 | 1000–1200 | Best (Large Commercial) |
Height Calibration: Securing Clearance for Vertical Multi-Tier Cage Stacks
Eave height must provide at least 0.8–1.0m clearance above the top tier of cages. This ensures uniform negative pressure airflow, proper installation of ventilation inlets, and sufficient space for maintenance and automatic equipment operation across all tiers.

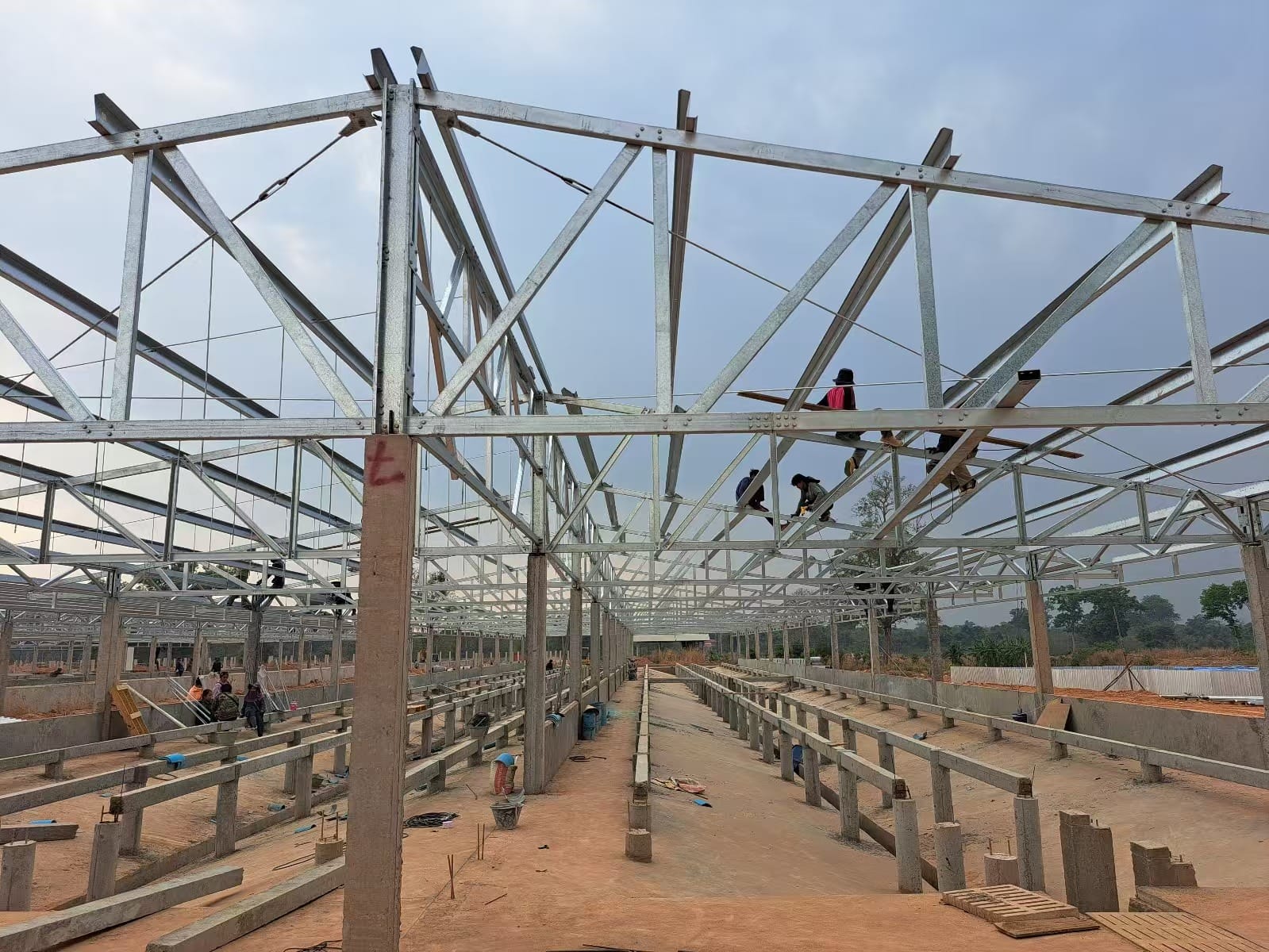

Steel Framing Selection: H-Beams, Purlins, and Thermal Insulation Requirements
Heavy hot-dip galvanized H-beams and C/Z purlins with proper anti-corrosion treatment are essential to withstand high humidity and ammonia. Sandwich PU or rock wool panels with good thermal insulation help maintain stable internal climate and reduce energy costs for ventilation and cooling.
Conclusion
Selecting the right steel structure dimensions is critical for long-term performance and cost efficiency in automated multi-tier layer cage houses. Optimal 12m–18m clear-span widths combined with adequate eave height and robust framing deliver maximum cage density, superior ventilation, and the best return on investment.
Need a Free Turnkey Poultry Farm Project Assessment, Layout Design & Structural Blueprint Quote?
Our engineering team provides professional steel structure design, detailed layout planning, and complete turnkey quotations for automated multi-tier layer cage projects.
