Automatic Broiler Cages
A:Cage Frame
Material:Q235 high quality Steel material from brand manufacturer:275g/m2 Hot-dip Galvanized Steel,stronger equipment with better corrosion resistance.
B:Automatic Birds harvesting system:automatic transport broilers out of the house,daily manure removal to reduce ammonia emissions in the house to minimum.
C:Plastic Slat Floor: pull type soft pp floors,prevents breast blisters and promotes clean and healthy feet thus providing excellent hygienic,quick and efficient moving out of broiler
D:4 tiers battery cage:2-4 times higher capacity compared to floor system,high utilization of space ，reduced energy costs for heating or cooling.
A1.Automatic transport of broilers out of house.
A2.Daily manure removal.
A3.Simple cleaning and disinfection after the batch.
A4.Survival rate up to 99.8%.
A5.Higher uniformity of marketing weight.
A6.Dimensions:3000*1800mm,3 tiers,4 tiers.
Manual Broiler cages
Focusing on the large-scale breeding needs of modern broilers,to meet the characteristics of fast and safe production of broilers develop unique cages and systems for feeding drinking,manure removal,and environmental control,based on the healthy growth environment of broilers and help customers achieve economic benefits
M1.Fully assembled and high accuracy installation for easy maintenance.
M2.Double portal structure for more convenient feeding.
M3.Gantry feeding equipment for cost effectiveness.
M4.Reasonable excrete disposal equipment to clean the cage completely.
M5.Multiple environmental control design and triple warning system.
M6.to protect your property.
Layer cages H-TYPE
H type layer cage rearing system
LC1.high density raise economical use of land, save about 70% than A type.
LC2.save space,one square meter can raise 62 chickens.use transportation belt to clean manure also make it to granularity,reduce environment pollution.
LC3.the most ideal way to raise environmental protection egg.The chicken cage is a large laminated cabinet frame.
LC4.cage with the size of 1.2×1.2m.
Layer cages A-TYPE
L1.Every nets and bottom nets are encryption, can effectively prevent the peck plume pecked the anus.
L2.Unique door, door reinforcement design space increases, it will be convenient for the chicken exercise and activity.
L3.High density raise economical use of land, which is beneficial to reduce the epidemic disease incidence rate.
B1.high density raise economical use of land, save about 70% than A type.
B2.save space,one square meter can raise 62 chickens.
B3.use transportation belt to clean manure also make it to granularity,reduce environment pollution.
B4.the most ideal way to raise environmental protection egg.
Ground System Equipment
Automatic Pan feeding system
Pan feeding system consists of a driving device, a hopper, a conveying pipe,an auger, trays, a suspension lifting device, an anti perching device and a feed sensor. The main function of the system is to convey the feed in the hopper into each tray to ensure the eating of the meat chickens and automatically control the conveying opening/closing of the motor by the material level sensor o achieve the aim of automatic feeding.
Automatic nipple drinking system
Breeder System
Nest Box
Fan And Cooling Pad
FAN
Evaporative Cooling Pad
E1.two model:7090 and 5090.
E2.four color can be choose:brown,green,green&brown,black.
E3.three frame material:aluminum alloy,stainless steel and hot galvanized steel.
E4.strictly according standard to produce,85 pieces 600mm width paper;adopt imported kraft paper,weight is 105g/m3,tension stress:70N,thickness 0.18-0.20mm suction height 45mm/10min,moisture 5%-8%,wet strength:18N
Silo And Other
Silo
Detailed information:
S1. Silo body is made of 275g/m2 hot galvanized pane(two sides),There is a hole on the hypo-cone for inspecting the feed level.
S2.We have different kinds of silo for different demands
S3.All are high intensive,anti-corrosive,easy-installing and have years longevity.

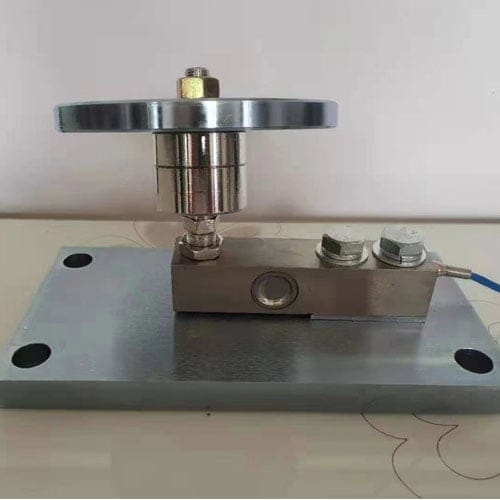

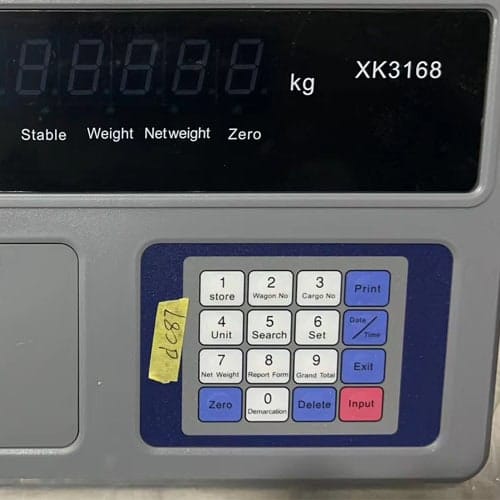

Silo weighing system
Intelligent recording system makes perfusion feeding more convenient.

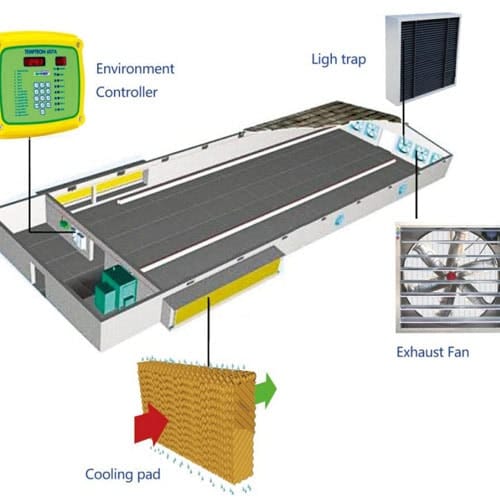

Environment Controller
EC1.environment control system has chicken grow temperature curve,minimum air volume curve, light curve, automatic control crosswise and length ways ventilate.
EC2.control exhaust fan, heater stove,curtain,cooling pad, light system
and feeding line.
EC3.Can through the mobile phone to realize remote real-time monitoring
and mangement.

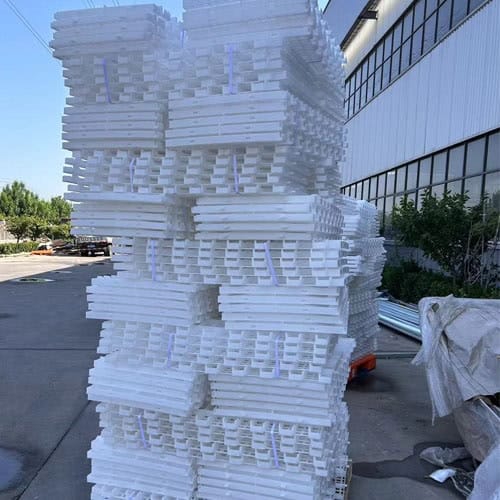

Chicken Plastic Slat Floor
C1.size:1.2*0.5m
C2.100% raw plastic material lead to following advantage high tensity,ageing resistant.anti-corrosion ,strong capacity,easy to clean&fix,long service life.
C3.reasonable leak hole,avoid hurt chicken feet.
C4.easy to install,smooth surface.

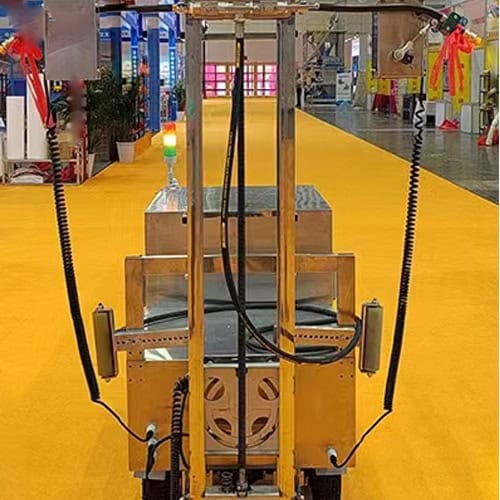

Chicken cage cleaning machine
CC1.The main machine power is 15kw, the swing arm has 2 nozzles and 3 ground nozzles.
CC2.The power of the main machine is 22kw, the swing arm has 4 nozzles, and the ground spray has 4 nozzles.
CC3.The main machine power is 30kw, the swing arm has 6 nozzles and 4 ground nozzles.
Complete Chicken Farming Equipment List
Weifang Splendid Machinery manufactures and supplies a full range of high-quality chicken farming equipment for layer farms, broiler farms and pullet rearing. All systems are made in our own factory with 10+ years of export experience to Southeast Asia, Middle East and Africa.
1. Cage Systems
- H-Type Layer Cages – High-density automatic battery cages for large commercial farms
- A-Type Layer Cages – Cost-effective multi-tier cages for medium-sized farms
- Broiler Cages – Specialized broiler cages with automatic feeding and drinking systems
2. Feeding & Drinking Systems
- Automatic Pan Feeding Systems
- Chain Feeding Systems
- Nipple Drinking Systems with automatic water lines
- Cup Drinking Systems
3. Ventilation & Climate Control
- Exhaust Fans
- Cooling Pads & Wet Curtain Systems
- Environmental Control Systems
4. Other Essential Chicken Equipment
- Nest Boxes – Automatic and manual nest boxes for better egg collection
- Automatic Manure Removal Systems
- Egg Collection Systems & Egg Belts
- Poultry Lighting Systems
- Chick Rearing Cages & Brooder Cages
Looking for the right equipment for your chicken farm?
→ View Our Real Farm Project Cases & Get Free Quotation Now
Contact our team directly for professional advice and best price:
WhatsApp: +86 18853614916
Our complete chicken farming equipment includes H-type broiler cages and A-type/H-type layer cages, floor raising systems with pan feeding, chain feeding and nipple drinking lines, ventilation fans and cooling pads, automatic nest boxes, and poultry feed silos.
See how these systems are installed in real farms through our global project cases.
